Quick Opening Manhole Hinges: Why They're Crucial for Utility Providers
Quick opening manhole hinges are a critical component of modern utility infrastructure. For water, wastewater, gas, power, and telecommunications providers, hinged manhole covers and access hatches directly affect safety, efficiency, and long‑term asset performance. This guide explains what quick opening manhole hinges are, how they work, and why they are so important for utility operations.
Quick opening manhole hinges are mechanical hinge assemblies that connect a manhole cover or access hatch to its frame, allowing the cover to be opened rapidly and safely without fully removing it from the structure. Unlike loose or lift‑out covers, hinged manhole covers remain attached, can be opened with less effort, and often include features that control movement and position.
In utility networks, quick opening manhole hinges are used on:
Sewer and wastewater manholes
Stormwater and drainage access points
Potable water reservoir and tank hatches
Valve chambers and meter pits
Gas and district heating access covers
Electrical and telecom utility vaults
Provide a pivot point so the cover can swing open rather than be lifted out.
Support the cover weight during opening and in the fully opened position.
Limit the opening angle to protect nearby structures and personnel.
Prevent the cover from falling into the manhole or onto operators.
Allow relatively fast access for routine inspections and emergency response.
Standard hinged covers may require multiple operations, tools, or partial disassembly to fully open. Quick opening manhole hinges are specifically designed for rapid, direct access with minimal steps while still controlling movement and ensuring security. They are often paired with gas springs, counterweights, or balanced designs to reduce opening forces for utility crews.
For utility providers, quick opening manhole hinges are not only a mechanical detail; they are a strategic choice that affects operational efficiency, worker safety, regulatory compliance, and lifecycle cost. Hinged manhole systems contribute directly to the reliability and maintainability of critical underground infrastructure.
Utility crews often work under time pressure, especially during emergencies such as water main breaks, sewer blockages, or power outages. Quick opening manhole hinges help reduce time from arrival to access:
Minimal tools required to open the manhole cover.
Fewer steps to transition from closed to fully open position.
Reduced need for additional lifting equipment in many situations.
Over thousands of maintenance events, the time saved at each access point can translate into significantly lower labor costs and faster service restoration.
Manual handling of heavy cast iron or composite manhole covers is a major source of injury risk in field operations. Quick opening manhole hinges can reduce or mitigate:
Back strain and musculoskeletal injuries from lifting heavy covers.
Hand and finger injuries from unstable or slipping covers.
Crushing hazards when loose covers tip, shift, or fall into the opening.
Because the cover remains mechanically connected to the frame, there is less chance of it being dropped or mishandled. Many hinged systems also integrate hold‑open devices that secure the lid in an upright position, minimizing unintended closure due to wind, vibration, or accidental contact.
Traditional loose covers can be misaligned or not fully seated after maintenance work, leading to:
Trip hazards for pedestrians and vehicles.
Increased risk of cover theft or unauthorized removal.
Infiltration of surface water or debris into the manhole.
Hinged manhole covers reduce these risks because the cover position is defined by the hinge geometry and frame. Properly designed quick opening manhole hinges help ensure that the cover reliably returns to its intended closed position after each operation.
Utility operations departments are under constant pressure to do more with less. Quick opening manhole hinges support operational efficiency by:
Reducing crew size required for certain access tasks.
Minimizing setup time and manual positioning of heavy covers.
Allowing individual technicians to safely access smaller structures alone, where permitted by safety rules.
In combination with standardized hinged access covers across a network, training becomes simpler and field procedures more consistent.
Underground networks represent major capital investments. Quick opening hinged manhole covers help protect these assets by:
Reducing accidental cover drops that could damage internal equipment.
Ensuring consistent sealing surfaces for gaskets, reducing surface water ingress.
Helping keep debris out of sensitive chambers through more reliable closure.
Better control of access can extend asset life, reduce corrosion, and lower the frequency of unplanned maintenance interventions.
While quick opening manhole hinges can have slightly higher up‑front costs than simple lift‑out covers, utility providers often see savings over the full lifecycle due to:
Reduced injury claims and related costs.
Lower operating labor for routine inspections.
Fewer incidents of cover loss, theft, or breakage.
Increased longevity of the access system itself when robust hinges are specified.
When evaluated on a whole‑life cost basis, hinged access systems are frequently justified for high‑use or safety‑critical locations.
Not all hinged manhole covers are the same. Quick opening manhole hinges typically incorporate several design elements that enable rapid, controlled opening with minimal manual effort.
The hinge geometry controls how the cover moves as it opens:
Offset pivot points can reduce the initial lifting force by leveraging the cover weight.
Multi‑link hinges may move the cover away from the opening as it swings upward, improving clearance.
Full‑length hinges distribute load along the frame and increase stability.
For heavier covers or larger hatches, quick opening designs often include:
Gas springs or gas struts to counterbalance the cover weight.
Mechanical springs or torsion bars integrated into the hinge.
Counterweights positioned to reduce required manual force.
These components make it feasible for a single operator to open a heavy cover while maintaining control over the motion.
To prevent uncontrolled movement, quick opening manhole hinges commonly feature:
Defined maximum opening angles (e.g., 90°, 100°, 120°).
Automatic or manual locking props that secure the cover in the open position.
Secondary stops that engage if the primary hinge component fails.
Such mechanisms are essential for utility providers that require predictable and secure access conditions.
Some quick opening hinge systems allow rapid opening but still enforce security via:
Locking bolts or latches that can be operated from the surface.
Integrated hasps or lock bars for padlocks or security seals.
Keyed or tool‑operated opening mechanisms for controlled access.
This combination of quick operation and controlled access is particularly valuable for critical infrastructure such as water treatment facilities, gas networks, and power distribution points.
Hinged manhole covers must still meet performance requirements for:
Water tightness (for potable water or sensitive electrical vaults).
Gas tightness (for sewer gases or process gas applications where applicable).
Odor control in wastewater and industrial settings.
Quick opening manhole hinges are therefore designed to maintain consistent compression on gaskets or seals when the cover is fully closed and latched.
Utility access covers are subject to different load ratings depending on their location. Quick opening hinged systems can be designed to meet:
Pedestrian load classes for sidewalks and green areas.
Traffic load classes for roads, highways, and airport pavements.
Special heavy‑duty classes for industrial yards and ports.
The hinge design must ensure that the full structural load is safely transferred through the frame and cover while accommodating the hinge hardware.
Safety is the primary reason many utility providers adopt quick opening manhole hinges. Regulatory frameworks, industry standards, and internal safety policies all influence hinge selection and configuration.
Common safety objectives supported by hinged manhole covers include:
Minimizing manual handling of heavy objects.
Reducing risk of musculoskeletal disorders.
Preventing uncontrolled or unexpected movements of covers.
Quick opening hinges are frequently discussed in internal safety guidelines, job safety analyses, and confined space entry procedures.
Opening a manhole is often the first step in a confined space entry. Hinged systems contribute to safe confined space operations by:
Allowing a stable, unobstructed opening for tripods or retrieval devices.
Keeping covers out of the way of ventilation ducts and monitoring equipment.
Reducing clutter around the opening where rescuers and attendants operate.
Hinged covers connected by quick opening manhole hinges help utilities protect the public by:
Lowering the risk of accidentally leaving a cover mis‑seated.
Reducing potential for cover displacement due to traffic vibrations.
Discouraging unauthorized entry because complete removal is more difficult.
These aspects can limit liability exposure in the event of incidents involving pedestrians, cyclists, or vehicles.
While specific standards vary by country and application, quick opening hinged systems commonly need to align with:
Load rating and performance classifications used for manhole covers.
Facility safety rules for fall protection and access control.
Local building codes and utility design manuals.
Many utilities develop standard drawings and technical specifications that define when and how quick opening hinged covers should be used across their networks.
The performance and durability of quick opening manhole hinges depend heavily on material selection. Utility providers must match hinge materials to environmental conditions, load requirements, and maintenance capabilities.
| Material |
|---|
| Typical Use |
|---|
| Key Advantages |
|---|
| Typical Limitations |
|---|
| Cast Iron (Ductile or Gray) |
| Traditional sewer and water manhole covers |
| High strength, good load capacity, cost‑effective |
| Corrosion risk in aggressive environments, heavy weight |
| Structural Steel (Carbon Steel) |
| Fabricated frames and hinged access hatches |
| Versatile fabrication, high load capacity |
| Requires coatings or galvanizing, susceptible to corrosion when unprotected |
| Stainless Steel (e.g., 304, 316) |
| Potable water reservoirs, food and pharma utilities |
| Excellent corrosion resistance, sanitary, long service life |
| Higher material cost, may require careful design for load and fatigue |
| Aluminum Alloys |
| Lightweight covers in non‑traffic or light traffic areas |
| Low weight, good corrosion resistance, easy handling |
| Lower load capacity, potential for deformation under heavy loads |
| Composite Materials (FRP) |
| Corrosive environments, non‑metallic requirements |
| Corrosion‑free, lightweight, non‑conductive |
| Specialized hinge design needed, may have different wear characteristics |
Even robust quick opening manhole hinges require corrosion protection for long service life. Common strategies include:
Hot‑dip galvanizing for carbon steel components in outdoor environments.
Epoxy or polyurethane coatings on hinge parts exposed to wastewater or chemicals.
Use of stainless steel pin and bushing materials in critical pivot areas.
Regular lubrication and inspection regimes to prevent seizure of hinge pins.
Utility providers must consider the specific environment where each hinged manhole will be installed:
Sewer and wastewater: Hydrogen sulfide, moisture, and chemical cleaning agents can be aggressive to metals.
Coastal areas: Salt air and splash zones accelerate corrosion.
Industrial sites: Process chemicals or vapors may affect hinge materials and seals.
Matching hinge materials and protective systems to these conditions is essential for maintaining quick opening functionality over many years.
Utility engineers and procurement teams rely on clearly defined technical specifications when selecting quick opening manhole hinges. While actual numbers vary by project, the table below summarizes common specification parameters.
| Parameter |
|---|
| Typical Range / Example |
|---|
| Description / Relevance |
|---|
| Cover Size |
| 400–1200 mm clear opening (round) or equivalent rectangular |
| Defines the manhole opening that the hinged cover must span. |
| Load Rating |
| Pedestrian to heavy traffic (e.g., walkway up to truck and forklift loads) |
| Specifies the maximum anticipated surface load for the application. |
| Opening Angle |
| 90°, 100°, 120° or custom |
| Maximum angle from closed to fully open position. |
| Opening Force |
| Often targeted < 200–250 N (approx.) |
| Force required at the handle to initiate and complete opening. |
| Closing Force |
| Managed to avoid slam; often limited by design |
| Ensures controlled closure without excessive impact. |
| Hold‑Open Capability |
| Yes / No; automatic or manual |
| Whether the hinge system includes a device to lock cover open. |
| Material |
| Cast iron, carbon steel, stainless steel, aluminum, FRP |
| Base material for cover, frame, and hinge components. |
| Corrosion Protection |
| Galvanized, coated, stainless, anodized, composite |
| Describes the primary method of corrosion resistance. |
| Sealing |
| None, water‑resistant, watertight, gas‑tight |
| Performance of cover/frame interface for fluids and gases. |
| Security Features |
| Locking bolts, padlock tabs, tamper‑resistant fasteners |
| Measures to prevent unauthorized or accidental opening. |
| Temperature Range |
| Commonly −20°C to +60°C (or wider if specified) |
| Expected operating temperature range for hinge performance. |
| Hinge Pin Design |
| Fixed pin, removable pin, lubricated bushing |
| Details of pivot connection; affects maintenance and durability. |
Many utility organizations create internal standard specification sheets that define acceptable ranges for these parameters based on the type of network asset and installation environment.
Quick opening manhole hinges are deployed across multiple segments of utility infrastructure. Each application has its own operational priorities and performance requirements.
Water utilities use hinged access covers in:
Valve chambers and isolation valve pits.
Meter boxes and metering chambers.
Reservoir roof hatches and treatment plant access points.
For potable water facilities, quick opening hinges must be compatible with hygiene requirements and often utilize stainless steel or coated components.
In wastewater networks, quick opening manhole hinges support access to:
Sewer manholes for cleaning and inspection.
Pump station wet wells and dry wells.
Combined sewer overflow (CSO) structures.
Odor control, corrosion resistance, and ease of operation are especially important due to harsh chemical environments and frequent access demands.
Stormwater systems often require quick access during heavy rainfall events and flood response. Hinged covers can be used on:
Stormwater inspection chambers.
Detention or retention tank access points.
Outfall control structures.
Reliability in wet conditions and resistance to debris accumulation around the hinge area are key selection factors.
Gas distribution networks and district heating systems use manhole and chamber covers to protect:
Regulator stations and valve chambers.
Heat exchanger pits and service connections.
Quick opening hinges in these environments must consider potential gas accumulation, making proper sealing and ventilation management critical design elements.
Power and telecom utilities rely on underground structures for:
Cable jointing chambers.
Distribution vaults.
Signal equipment enclosures.
For these applications, quick opening manhole hinges must support secure access control, minimize water ingress, and allow easy cable handling and equipment servicing.

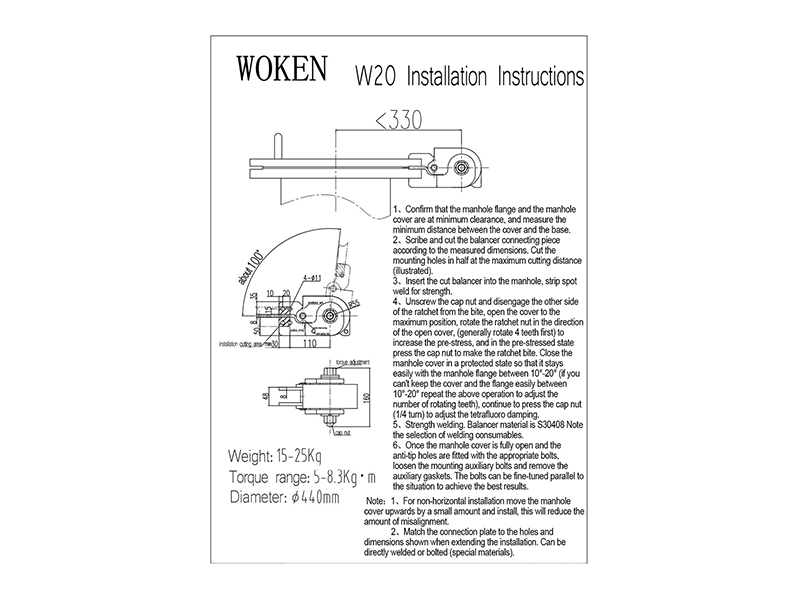

Proper installation and ongoing maintenance are essential to fully realize the benefits of quick opening manhole hinges. Even the best hinge design will perform poorly if incorrectly installed or neglected over time.
Frame Alignment: Ensure the manhole frame is level, square, and properly seated on a stable base before setting concrete or backfill.
Hinge Orientation: Position the hinge to minimize interference with traffic and to allow safe operator stance during opening.
Concrete Support: Provide adequate bearing and reinforcement beneath the frame legs and hinge area to avoid long‑term settlement.
Corrosion Protection: Avoid damaging galvanizing or coatings during installation; repair any damaged areas per manufacturer or specification guidance.
Functional Testing: Open and close the cover several times after installation to verify clearances, seal contact, and operation of hold‑open devices.
Regular Inspection: Incorporate hinge checks into routine inspection rounds for manholes and access points.
Lubrication: Apply appropriate lubricants to hinge pins and moving parts as required to avoid seizure, especially in dirty or corrosive settings.
Debris Removal: Keep hinge recesses and surrounding frame areas clear of dirt, gravel, and vegetation that could restrict movement.
Component Replacement: Monitor for wear in pivot pins, bushings, and gas springs; replace components proactively before failure.
Seal and Gasket Checks: Verify that any gaskets or seals around the cover remain intact and properly compressed when the cover is closed.
| Issue |
|---|
| Likely Cause |
|---|
| Mitigation / Solution |
|---|
| Cover difficult to open |
| Misaligned frame, seized hinge pin, or failed gas spring |
| Check alignment, clean and lubricate hinge, replace assist mechanisms as needed |
| Cover does not fully close or sit flush |
| Debris under cover, deformed frame, or damaged hinge |
| Inspect and clean seating surfaces, repair or replace damaged components |
| Hold‑open device not engaging |
| Improper installation angle or mechanical wear |
| Adjust alignment or replace hold‑open components |
| Corrosion at hinge area |
| Damaged coating, aggressive environment, lack of maintenance |
| Recoat, upgrade material if necessary, implement regular inspection and cleaning |
| Excessive play or wobble in cover |
| Worn hinge pin or bushing |
| Replace pin and bushing, verify correct sizing and tolerances |
Utility providers and design engineers should approach the selection of quick opening manhole hinges systematically. The following factors can be used as a checklist when specifying hinged manhole covers for new installations or retrofit projects.
Type of utility (water, wastewater, gas, power, telecom, mixed services).
Location (roadway, sidewalk, green area, inside facility building).
Expected frequency of access (daily, weekly, monthly, rarely).
Required sealing performance (simple cover vs. watertight or gas‑tight).
Determine applicable load rating based on traffic category.
Assess risk of impact loading from vehicles or equipment.
Check subgrade conditions that may affect frame and hinge support.
Target acceptable opening force for typical field personnel.
Decide if assisted opening (gas springs, counterweights) is necessary.
Specify required hold‑open angle and type of hold‑open mechanism.
Address confined space entry protocols and rescue needs.
Identify exposure to wastewater gases, chemicals, or marine conditions.
Select appropriate base materials and corrosion protection systems.
Consider galvanic compatibility if mixing materials (e.g., stainless on carbon steel).
Determine if locking or tamper‑resistant features are required.
Plan for emergency access provisions by authorized personnel.
Assess risk of vandalism or unauthorized use for each site.
Confirm availability of spare hinge components and consumables.
Ensure the design allows hinge pins or assist mechanisms to be replaced in the field.
Integrate inspection and lubrication into maintenance schedules.
| Selection Category |
|---|
| Key Questions |
|---|
| Impact on Hinge Selection |
|---|
| Application Type |
| What utility and function does the manhole serve? |
| Determines sealing, material, and access frequency needs. |
| Traffic and Loads |
| Is the cover in a roadway, sidewalk, or off‑road area? |
| Defines load rating, cover thickness, and hinge robustness. |
| Safety and Ergonomics |
| How many operators and what opening force are acceptable? |
| Influences choice of assisted opening and hinge design. |
| Environment |
| What corrosive agents or extreme temperatures are present? |
| Guides material and coating selection for hinge components. |
| Security |
| Is unauthorized access a concern at this location? |
| Determines need for locking devices or tamper‑resistant features. |
| Maintenance Strategy |
| How frequently can hinges be inspected and serviced? |
| May favor more robust designs with low maintenance needs. |
Quick opening manhole hinges are evolving alongside broader changes in utility infrastructure management. Several trends are shaping the future of hinged access systems.
As utilities adopt sensors and remote monitoring, manhole covers and access points are increasingly used as platforms for:
Level sensors in sewer and stormwater networks.
Gas detection and environmental monitoring devices.
Asset identification tags and communication nodes.
Hinged systems must accommodate wiring routes, antenna clearances, and easy access to installed devices while still providing quick opening and secure closure.
Interest in composite materials and advanced alloys is growing as utilities seek to:
Reduce manual handling risks by lowering cover weight.
Improve corrosion resistance in aggressive environments.
Extend service life and limit need for replacements.
Hinge designs must adapt to the mechanical properties of these newer materials while preserving quick opening performance characteristics.
Future quick opening manhole hinges may increasingly incorporate:
Redundant hold‑open systems to prevent accidental closure.
Visual indicators or color coding to show when covers are not fully latched.
Improved ergonomic handles and grips for operation with gloves and PPE.
Many large utility providers are moving toward standardized hinged cover designs to:
Simplify training for field crews.
Streamline spare parts inventory.
Ensure consistent safety performance across regions.
Quick opening hinge specifications are often central to these standardization efforts.
As sustainability reporting becomes more important, utilities are evaluating the full environmental impact of assets, including manhole covers and hinges. Considerations include:
Material sourcing and embodied carbon.
Recyclability at end of life.
Durability and reduction of replacement frequency.
Durable, quick opening hinged systems that minimize injuries and unplanned maintenance align well with these long‑term sustainability goals.
A quick opening manhole hinge is designed so that a cover can be opened rapidly and safely with minimal steps and tools. Features often include assisted opening mechanisms, ergonomic handle placement, and integrated hold‑open systems, all focused on reducing operator effort and time while maintaining control over the cover movement.
Yes, many quick opening hinged manhole covers are specifically designed for heavy traffic applications. The hinge and frame must be engineered to meet the required load class, and the cover construction must distribute vehicle loads appropriately. Proper selection and installation are essential for long‑term performance under traffic loads.
They reduce the need to manually lift and move heavy covers, minimize the risk of dropping covers into the opening, and provide reliable hold‑open positions that prevent unintended closure. All these aspects significantly lower the risk of musculoskeletal injuries and impact accidents during routine and emergency operations.
Quick opening hinges include moving parts that benefit from periodic inspection and lubrication. However, when properly maintained, they often reduce overall maintenance effort by preventing damage, improving access, and maintaining consistent performance over time. Many utilities find the extra attention required is offset by fewer operational problems and safety incidents.
In many cases, yes. Retrofit solutions may involve replacing the existing frame and cover with a new hinged system or installing hinge components that connect to an existing structure. The feasibility of retrofit depends on the dimensions, structural condition, and loading environment of the existing manhole.
Stainless steel hinges and components with robust protective coatings are commonly used in corrosive wastewater environments. Some utilities also use composite covers with compatible hinge materials. The optimal choice depends on gas concentrations, cleaning practices, and the desired service life, but corrosion‑resistant materials are always critical.
Hold‑open devices are essential for safe operation. They prevent the cover from closing unexpectedly due to wind, vibration, or accidental contact. For confined space entries and long‑duration maintenance tasks, reliable hold‑open mechanisms are a fundamental safety requirement for most utility providers.
Indirectly, yes. While the hinge itself does not control odor, hinged systems often include consistent compression of seals and gaskets due to precise alignment of the cover and frame. This can result in better odor containment compared to misaligned or poorly seated loose covers.
No. Gas springs are one common method of assisted opening but not mandatory. For lighter covers or small access hatches, simple hinge designs without gas springs may provide adequate quick opening performance. The decision depends on cover weight, expected users, and safety policies.
Best practice is to create standardized specification sheets and typical drawings that define required material, load rating, opening force, sealing, corrosion protection, and safety features for quick opening hinged covers. These documents support consistent design, procurement, and installation across the utility's infrastructure portfolio.
Quick opening manhole hinges are a vital but sometimes overlooked element of utility infrastructure. For water, wastewater, gas, electrical, and telecommunications providers, hinged manhole covers enable safer, faster, and more efficient access to critical underground assets. By carefully specifying, installing, and maintaining high‑quality quick opening hinge systems, utility organizations can improve worker safety, reduce lifecycle costs, and enhance the reliability of their networks.
Whether planning a new network, upgrading existing structures, or updating safety standards, utility decision‑makers should treat quick opening manhole hinges as an integral component of modern, high‑performance access solutions.
```
This website uses cookies to ensure you get the best experience on our website.
Español
Français
Deutsch
한국어
Phone
Comment
（0）
